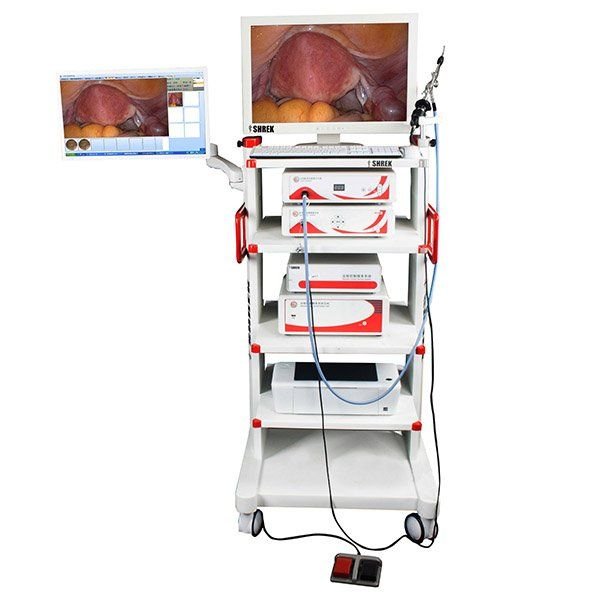

Designation: COMPLETE LAPAROSCOPY COLUMN
Brand: SHREK
Ref number: C000011
Features :
LAPAROSCOPE DEVICES
1/ Medical Monitor
Horizontal resolution: 1280×1024
21" HD LCD medical grade screen, aspect ratio: 16:9
Input signal: DVI, VGA, S-VIDEO, CVBS
Power supply: AC100~240V 50/60HZ Power: 40VA
2/ FULL HD Medical Camera
Original import chips;
Effective pixels: 19201080;
Progressive scanning;
Full HD 1080P camera;
Anti-interference treatment;
Horizontal resolution: 1080P (1000 lines)
Video output: HDMI4, SDI, BNC, VGA Manual/auto white balance;
SNR (Signal to Noise Ratio): ≥50dB
Digital zoom: 0-60X;
Brightness: ODS adjustment
Language: English, French, Spanish, Russian, Italian,
Japanese, etc.
3/ Medical LED light source
OSRAM bulb
Power: 490,000 LuX (50 watts)
Color temperature: ≥6500k
Light image temperature: ≤80℃
Digital display with cooling fan
4/ HD camera head with freeze button;
5/ Waterproof 28mm HD optical coupler
6/ Light guide cable 2.5 meters, standard diameter
7/ Electrosurgical unit
Five operating modes: automatic cutting, mixed cutting,
fulguration, coagulation and bipolar coagulation;
Large output power with high stability;
Dual control mode: manual switch and foot pedal;
Maximum output power: less than 400W;
Load: monopolar 300Ω, bipolar 100Ω;
Main load frequency: 450 kHz;
Power supply: 100-240V, 50/60Hz;
8/ CO2 insufflators
Rated power: 40VA;
Flow range: 10-30L;
Pressure range: 5-30mmHg;
Noise: ≤50dB;
Power supply: 100-240V, 50/60Hz;
9/ Endoscopic pump
Washing and suction of effluents or fragments into
enterocoelia surgery;
Rated power: 50VA;
Positive pressure range: 1050kPa;
Negative pressure range: -50 -10kPa;
Power supply: 100-240V, 50/60Hz;
10/ Full HD video recorder
Recording format: MP4;
Recording interface: USB disk and removable hard disk;
External mobile HDD: MAX 2T
Input signal: BNC, HDMI
Output signal: HDMI
11/ Cart
Dimensions: 6706101310mm;
Material: metal;
Sturdy, corrosion-resistant cart with five shelves
spaced appropriately.
The cart is equipped with casters
and two of the casters are lockable.
12/ Laparoscope 10mm *330mm, 30 degrees
LAPAROSCOPIC SURGERY INSTRUMENTS
1/ Veress needle 100-150mm
2/ Suction and irrigation tube 5mm & 10mm
3/ 5mm trocar
4/ 10mm trocar
5/ Reducer 10 to 5
6/ Sealing cap 10mm 10pcs
7/ Sealing cap 5mm 10pcs
8/ Dissection forceps, curved
with handle 5*330mm
9/ Dissection forceps
windowed, straight with handle 5*330mm
10/ Metzenbaum scissors, curved
with handle 5*330mm
11/ Electric hook 5*330mm
12/ Electric bipolar coagulation forceps
5*330mm
13/ Double-electrode wire
14/ Single-electrode wire 3m
15/ Knot pusher 5*330mm
16/ Needle holder with handle 5*330mm
17/ Forceps for gripping the fallopian tubes
with handle 5*330mm
